TOP LOADING TURN TABLE SERIES · MODEL PYM
PYM–2
Top Loading Turn Table Parts Washers
Washing is done in a completely isolated cabinet without a manual operation, with a rotating turn table and a removable transportation trolley for easy loading.
- 2 Models
- AISI 304L Stainless
- 85°C
- CE
- Trolley
GALLERY
Engineering from every angle.

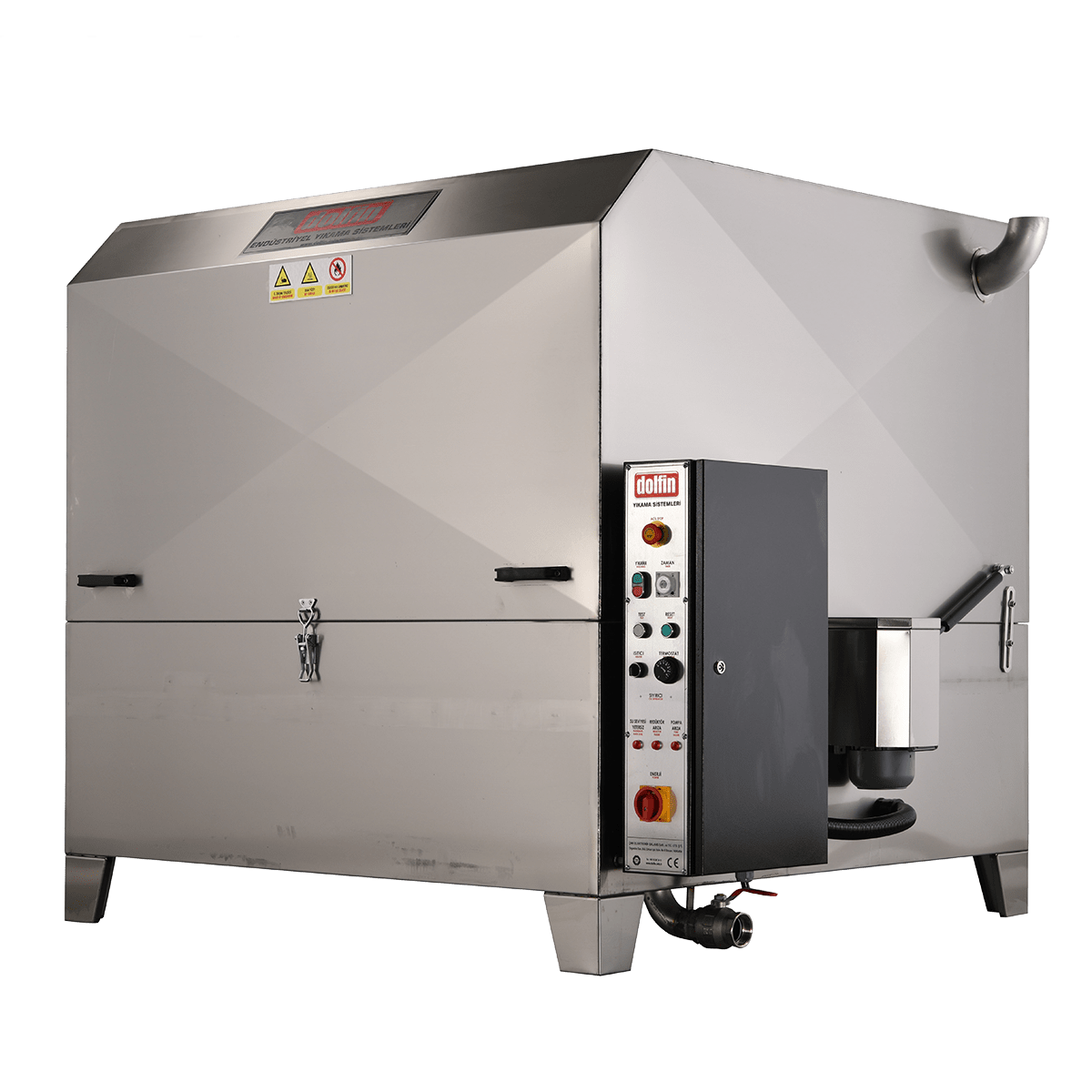

GENERAL VIEW
WORKING PRINCIPLE
Hands-free washing
in an isolated cabinet.
A 2–5% concentration alkali chemistry water is pumped from the tank via an electro stainless steel body pump and driven onto the part through specifically placed nozzles.
-
01
Isolated Cabinet
Washing is carried out automatically in a completely isolated cabinet, without any manual operation.
-
02
Stainless Steel Pump
An electro stainless steel body pump drives 2–5% alkali chemistry water from the tank.
-
03
Nozzle Spraying
Specifically placed nozzles reach the part from up, down and sides for full coverage.
-
04

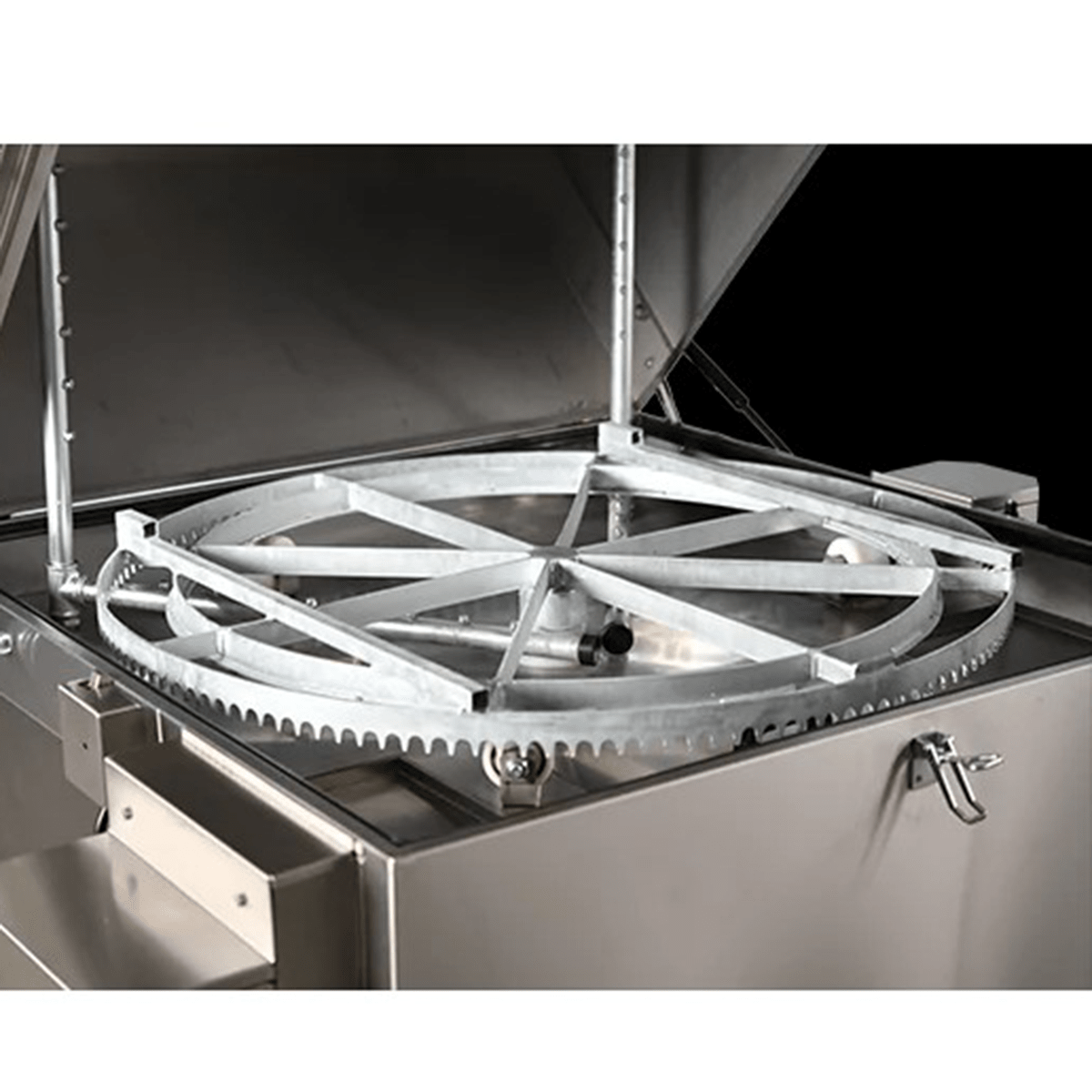

Rotating Turn Table
The basket rotates around itself; a removable transportation trolley eases loading.
CONTROL & SAFETY
Every function,
under full protection.
Electric board with failure alarm and full protection against electric shock.
- Emergency StopEmergency Stop Button

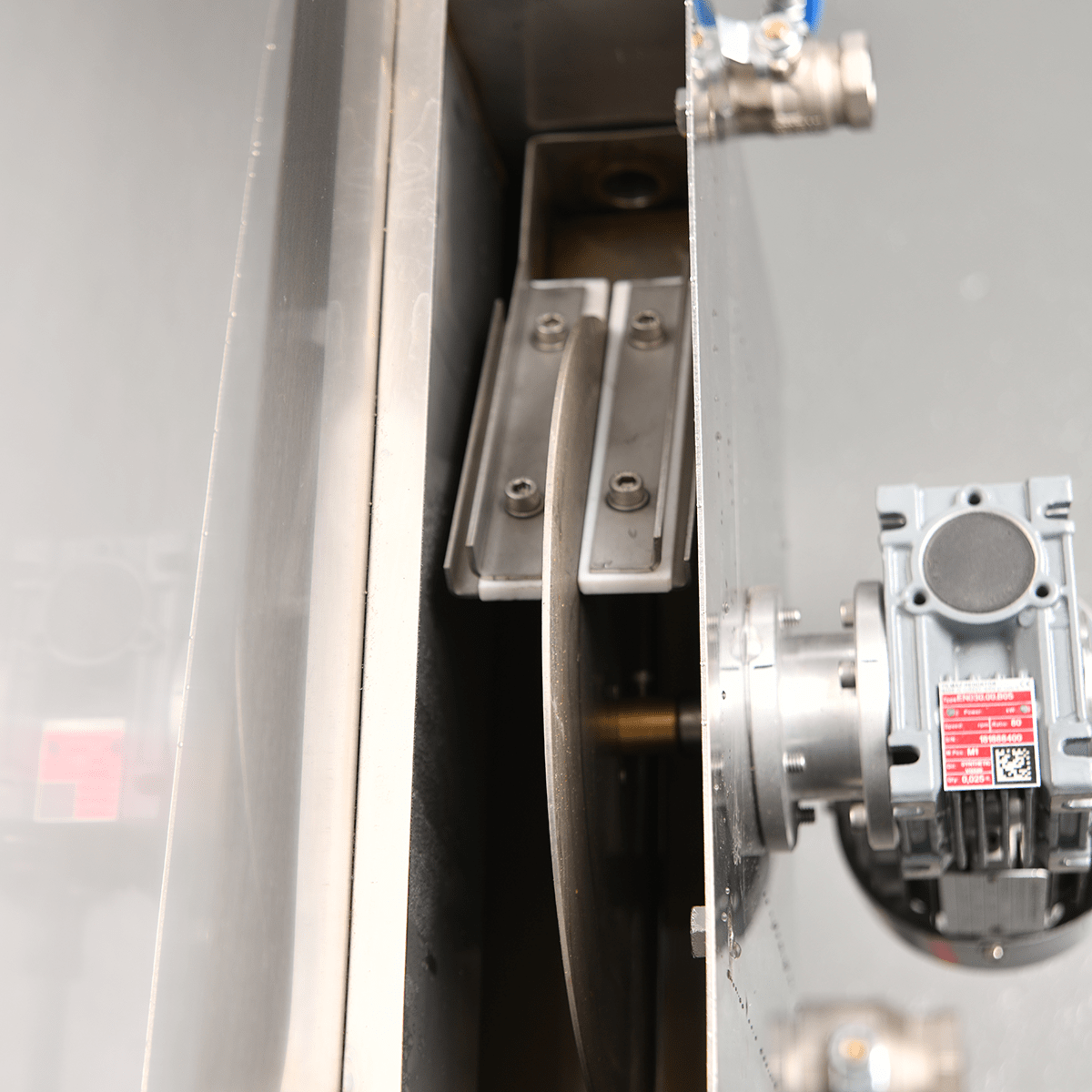

- WashingSide Driven Basket
- TimerTimer
- Failure AlarmBoard w/Failure Alarm
- Heat ProtectionWater Level & Heat Protection
TECHNICAL SPECIFICATIONS
Two models,
one standard.
ALL VALUES · ⌀ BASKET · V-Hz · °C
| Description | Unit | PYM 1350 | PYM 1500 |
|---|---|---|---|
| Diameter of Basket | mm | 1200 | 1350 |
| Max. Part Height | mm | 650 | 680 |
| Max. Workload | kg | 600 | 700 |
| Tank Capacity | L | 225 | 350 |
| Pump Power | kW | 2,2 | 4,4 |
| Number of Washer | psc. | 2 | 2 |
| Voltage | V-Hz | 380-50 | 380-50 |
| Cleaning Temperature | °C | 85 | 85 |
| Total Power | kW | 10,5 | 21 |
| Trolley | ✓ | ✓ |
FEATURES
Standard equipment,
optional upgrades.
STANDARD Standard Features
- Certification in Compliance With CE Standards
- AISI 304 L / 1.4301 Stainless Steel Main Body
- AISI 304 L / 1.4301 Stainless Steel Tank
- AISI 304 L / 1.4301 Stainless Steel Pump
- Board w/Failure Alarm
- Strengthened Washer Basket
- Side Driven Washer Basket
- Stainless Steel Removable Nozzle
- Dual Filtration System
- Stainless Steel in Pump Suction
- Resistance with Steel Heater
- Water Level Protection
- Heat Protection
- Timer
- Full Protection Against Electric Shock
- Emergency Stop Button & Small Parts Basket
- Operating Temperature up to 90 Degrees
- Highly Resistant Special Gasket on Pump
- Stripeless Cover Construction
- Cover with Damper
- Cover with Mechanical Lock
- Design with Easy-Maintenance
OPTIONAL Optional Features
- AISI 304 Stainless Steel Washer Basket
- Steam Relief Unit
- Electronic Interlock
- Disc Type Oil Scraper
- Digital Indicator
- Precise Filtration
- Drying Unit
- Body Heat Insulation
DOLFIN ADVANTAGE
- Our After-Sales Service
- Full Compliance to CE Standards
- AISI 304 L / 1.4301 Stainless Steel Main Body & Pump
- Secure Full Protection
- Electric Board w/Failure Alarm
UTILIZATION FIELDS
Cleans oil, burr
and surface contaminants.
Used to clean oil, burr and contaminants on surfaces, remove stains on metal, and prepare surfaces before welding.
- Automotive Spare Parts
- Machine & Part Manufacturers
- Medical Parts & Devices
- Automobile Repair
- Work Machine Services
- Bus Maintenance
- Truck & Heavy Vehicle Services
- Motor Revision
- Industrial Factory Maintenance
- Military Maintenance
- Public Maintenance
- Technical Training Institutes
